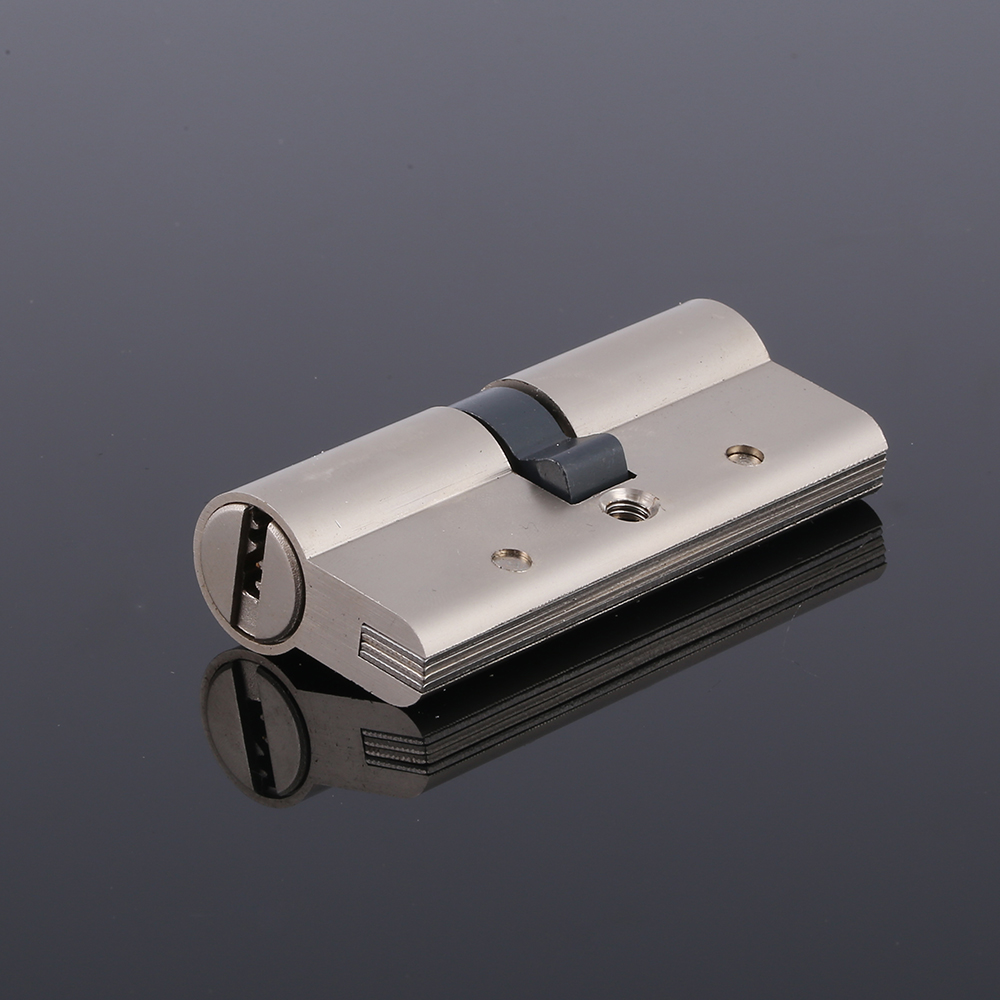

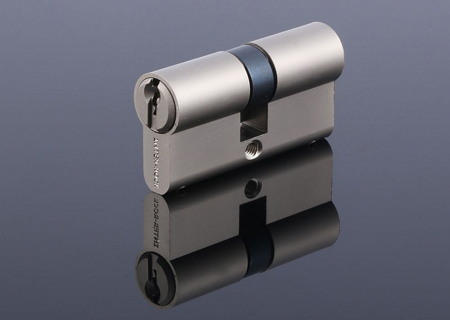

High Security Euro Profile Cylinders
Commonly known as a pin tumbler lock, Inter-Rock high security euro profile cylinder is typically made of copper with nickel-plated surface. With a lock mechanism that uses pins of varying length to keep the lock from opening with the proper key, the Inter-Rock’s euro profile cylinders of all security standards and are easy for installation by a locksmith. As a premium quality euro profile cylinder that features effective protection against bumping, picking and drilling, as well as snapping and plugging, the high security euro profile cylinder has the capability to secure your home with high security, thus protecting you against common door entry threats. Equipped with emergency function, it ensures that users open the lock from the outside even when the key is inserted in the lock cylinder. Furthermore, this euro profile cylinder is well suitable for different door widths and it is particularly applicable in bedrooms, bathrooms, offices, warehouses, schools, stores, etc.
Additionally, the euro cylinder is also available in double cylinder, so as to meet the needs of controlled access on both sides of the lock. And the key blanks and its surface can be treated to diversified needs of customers. Our high security euro profile cylinders can be supplied as keyed alike cylinder, allowing user to operate multiple cylinders with the same key.
There are a wide range of product portfolios, varying from SP, SP+ series to GP+ series high security euro profile cylinder, of which are as follows:
- Model: SP
- Lock cylinder type: Half cylinder (single cylinder) / double cylinder

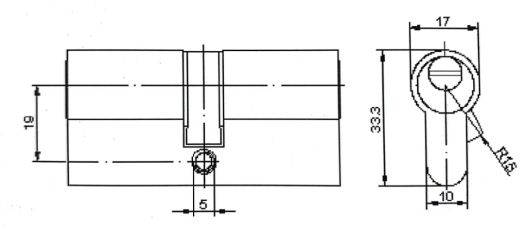

- Lock cylinder size: 33×17mm
- Lock cylinder material: Copper
- Pin tumbler: 5-10 pins
- Surface treatment: Nickel-plated, or as per customer request
- Functions: Protecting against bumping, drilling, picking and plugging
- Thumbturn: Yes
- Emergency function: Yes
- Keyway: specific keyway
- Number of key combinations: 100,000
- Key: key thickness 2.4mm, thickened key handle
- Color: customized
- Certificate: EN 1303:2015
- Warranty: 5 years performance warranty (security and safety assured)

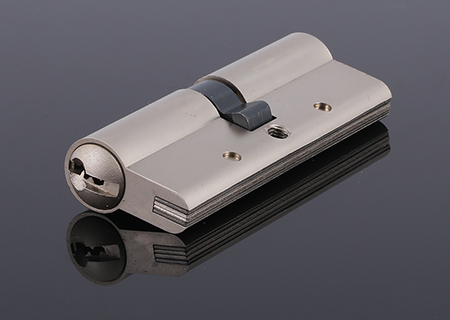

- Model: SP+
- Lock cylinder type: Double cylinder

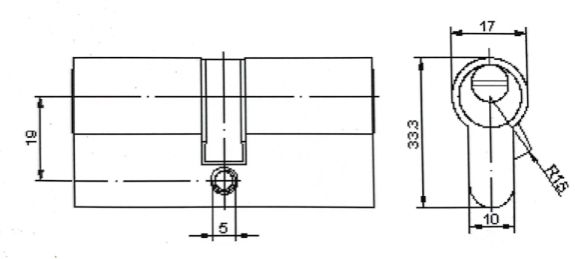

- Lock cylinder size: 33×17mm
- Lock cylinder material: Copper
- Pin tumbler: 5-10 pins
- Surface treatment: Nickel-plated, or as per customer request
- Functions: Protecting against bumping, drilling, picking, snapping and plugging
- Thumbturn: Yes
- Emergency function: Yes
- Keyway: Specific keyway
- Number of key combinations: 100,000
- Key: key thickness 2.4mm, thickened key handle
- Color: customized
- Certificate: EN 1303:2015
- Warranty: 5 years performance warranty (security and safety assured)

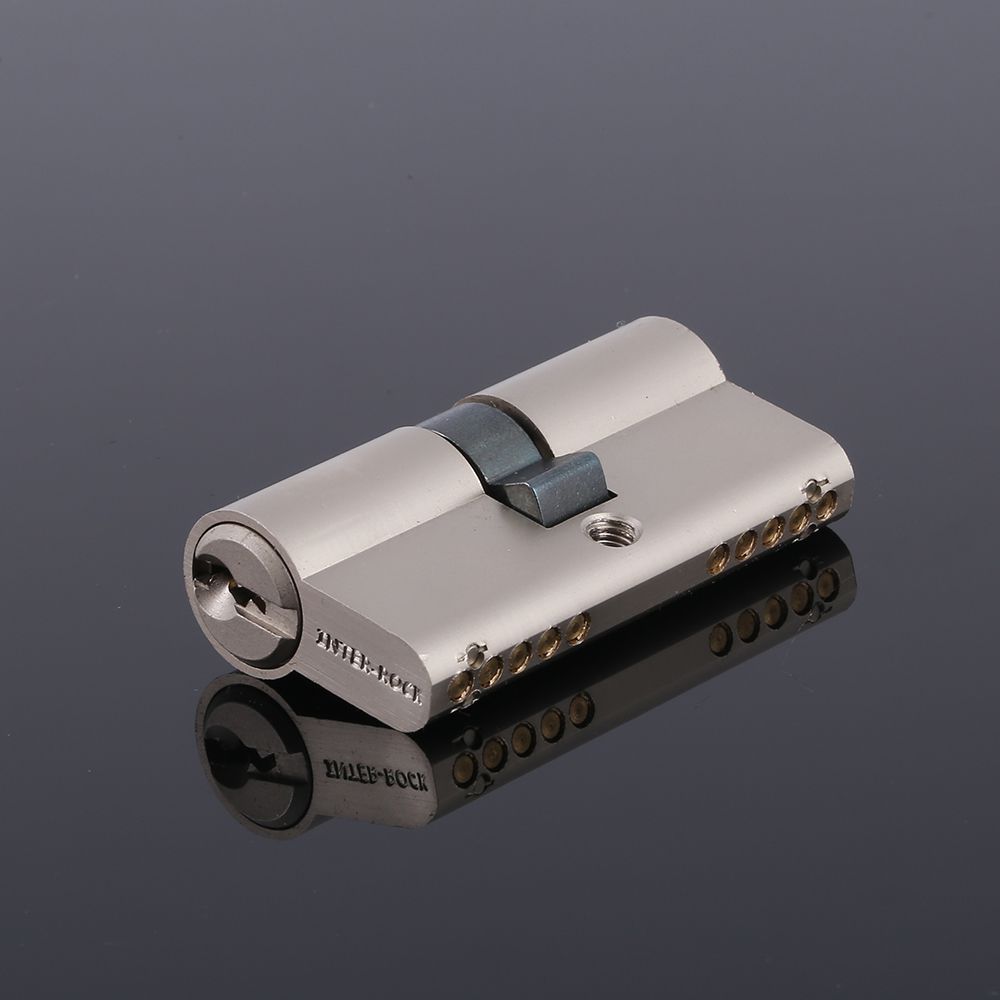

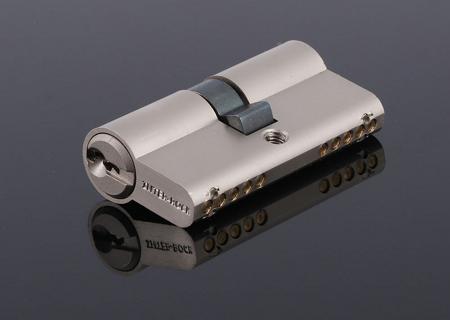

- Model: GP+
- Lock cylinder type: Double cylinder
- Lock cylinder size: 33×17mm
- Lock cylinder material: Copper
- Pin tumbler: 5-10 pins
- Surface treatment: Nickel-plated, or as per customer request
- Functions: Protecting against bumping, drilling, picking, snapping and plugging
- Thumbturn: Yes
- Emergency function: Yes
- Keyway: Specific keyway
- Number of key combinations: 100,000
- Key: Supplied with 5 dimple keys, key thickness of 2.5/2.8mm
- Color: Customized
- Certificate: EN 1303:2015
- Warranty: 5 years performance warranty (security and safety assured)

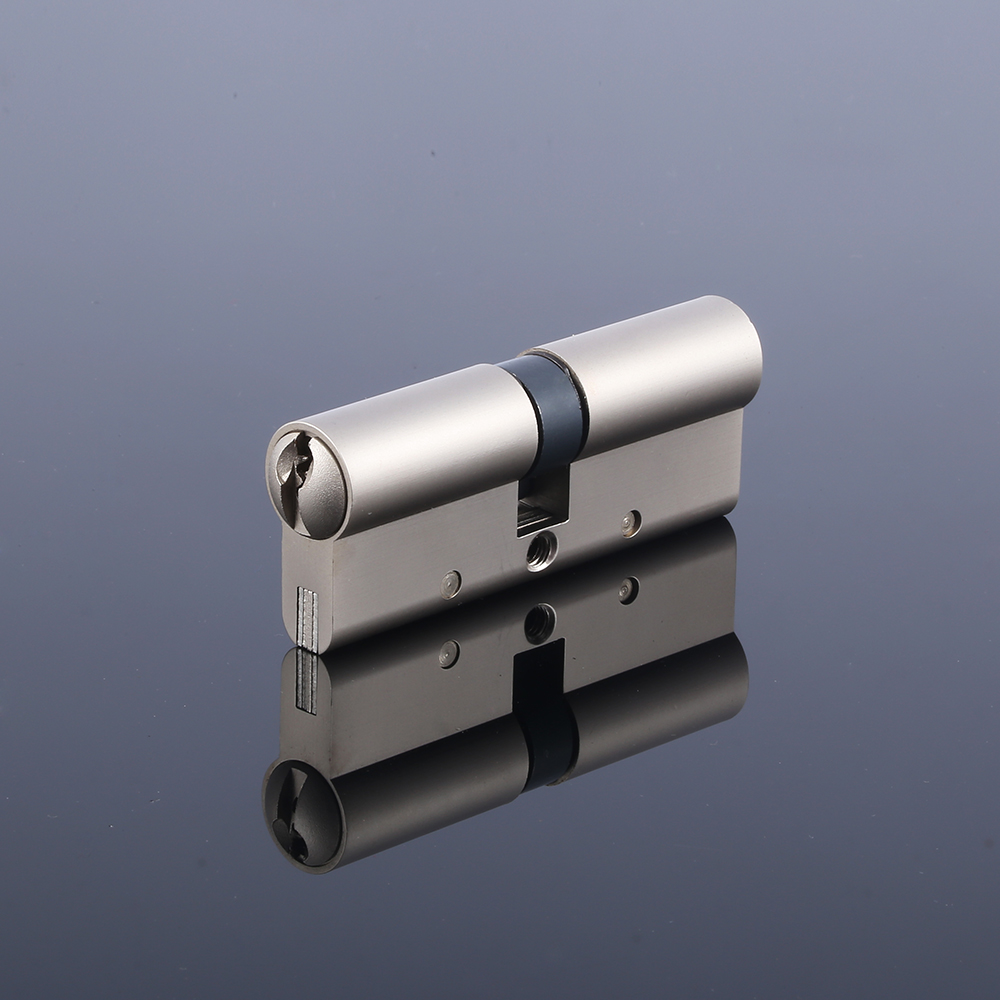

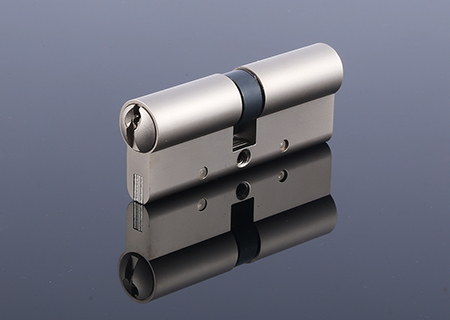

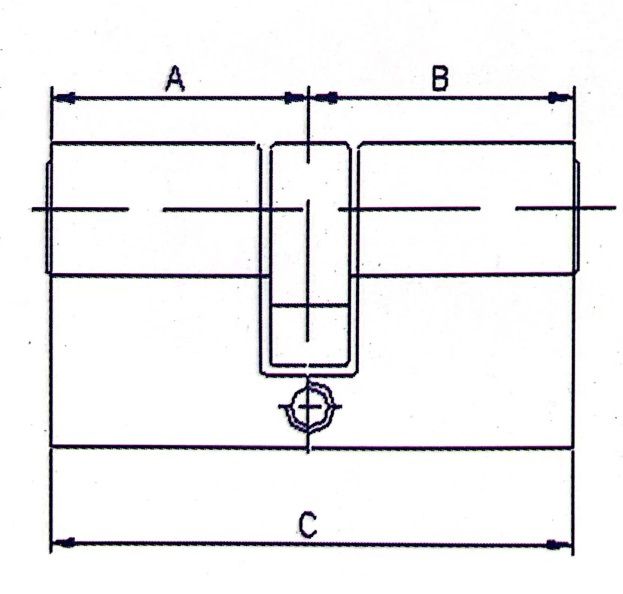

Double Cylinder Specifications
- A one side to the center
- B the other side to the center
- C the total size
A | B | C | 5K | 6K | N+G |
27 | 27 | 54 | × | ||
27 | 33 | 60 | × | ||
27 | 35 | 62 | × | ||
30 | 30 | 60 | × | × | |
30 | 35 | 65 | × | × | |
30 | 40 | 70 | × | × | |
30 | 45 | 75 | × | × | |
30 | 50 | 80 | × | × | |
30 | 55 | 85 | × | × | |
30 | 60 | 90 | × | × | |
30 | 70 | 100 | × | × | |
35 | 35 | 70 | × | × | × |
35 | 40 | 75 | × | × | × |
35 | 45 | 80 | × | × | × |
35 | 50 | 85 | × | × | × |
35 | 55 | 90 | × | × | × |
35 | 60 | 95 | × | × | × |
40 | 40 | 80 | × | × | × |
40 | 50 | 90 | × | × | × |
40 | 60 | 100 | × | × | × |
45 | 70 | 115 | × | × | × |
50 | 70 | 120 | × | × | × |
60 | 60 | 120 | × | × | × |
5K=5holes 6K=6holes N+G=both-side insert |

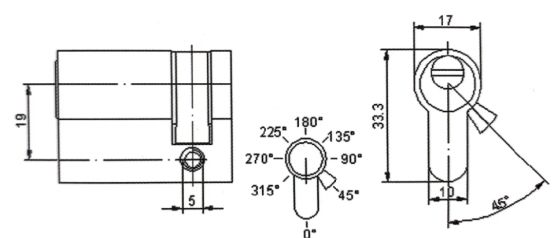

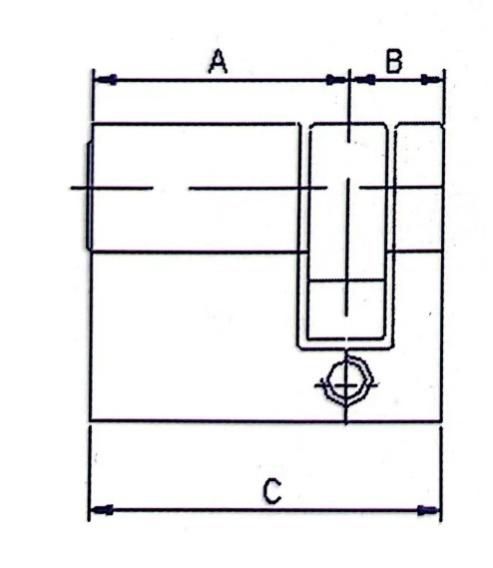

- A one side to the center
- B the other side to the center
- C the total size
A | B | C | 5K | 6K |
30 | 10 | 40 | × | |
31,5 | 10 | 41,5 | × | |
35 | 10 | 45 | × | × |
40 | 10 | 50 | × | × |
45 | 10 | 55 | × | × |
50 | 10 | 60 | × | × |
55 | 10 | 65 | × | × |
60 | 10 | 70 | × | × |
5K=5 holes 6K=6 holes |
Inter-Rock has over 20 years of experience in designing, developing and manufacturing euro profile cylinders, interchangeable core cylinders, cabinet lock cylinders and many other high security cylinders that meet your diverse needs for the reliable performance. What’s more, we offer a wide selection of keyways and lock solutions for commercial and institutional facilities. Our design philosophy is to create highly certified locks and cylinders which provide long-term benefits to the facility through increased efficiency and easy maintenance. So, if you’d like more detailed information about our products or services, just call us today to find out which lock cylinders might be right for your choice.
