Interchangeable Core Cylinders

As its name implies, Inter-Rock RC series interchangeable core cylinder is equipped with a highly compatible special format interchangeable core. That means it’s not necessary to remove the lock from a door to rekey the opening, which are specially designed so that cores can be quickly and easily changed by non-technical personnel through using a special control key. This special control key is particularly utilized to remove the old core and install the new one.

Compared with conventional cylinders, our interchangeable core cylinder offers excellent flexibility to the building owner. In addition, Inter-Rock interchangeable core cylinder is widely applicable in offices, hotels, schools, hospitals and dormitories where people need to change keys.

Features
  • Offers all the security advantages of a conventional cylinders;
  • Whenever a key is lost or stolen, locks can be rekeyed quickly by non-locksmith personnel or the person responsible for building security;
  • A special control key is specially used to remove and install all cores in the system, thus ensuring short-time recovery of security;

So, here are two main types of interchangeable core cylinder, including RC-D series and RC-N series interchangeable core cylinders.

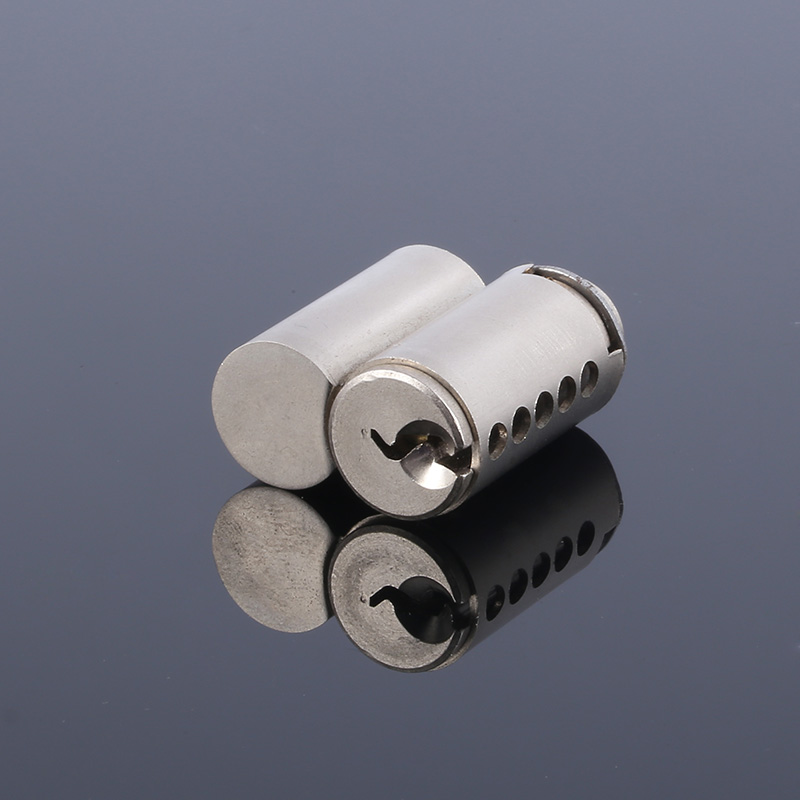

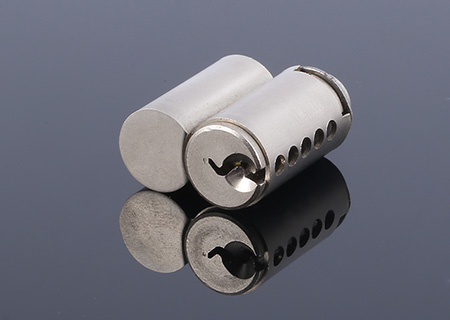

Interchangeable Core Cylinder (with dimple key), RC-D
Interchangeable Core Cylinder (with dimple key), RC-D Interchangeable Core Cylinder (with dimple key), RC-D
Request a Quote
Interchangeable Core Cylinder (with dimple key), RC-D
  • Model: RC-D
  • Lock cylinder type: Interchangeable core cylinder
  • Lock cylinders dimension: Ø(15×14)×27mm
  • Lock cylinder material: Brass
  • Pin tumbler: 5/6 pins
  • Surface treatment: Nickel-plated, or as per customer request
  • Function: Anti-drill
  • Keyed alike cylinder: can be provided according to customers’ requirements
  • Key: Supplied with 5 dimple keys, key thickness of 2.8mm
  • Color: Customized
  • Certificate: EN 1303:2015
  • Warranty: 5 years performance warranty (security and safety assured)

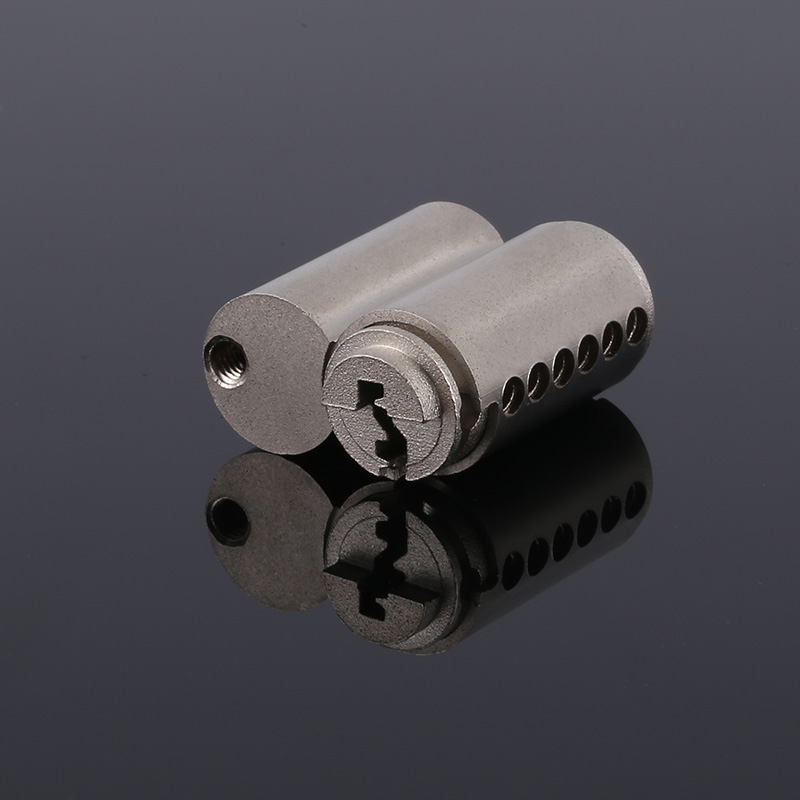

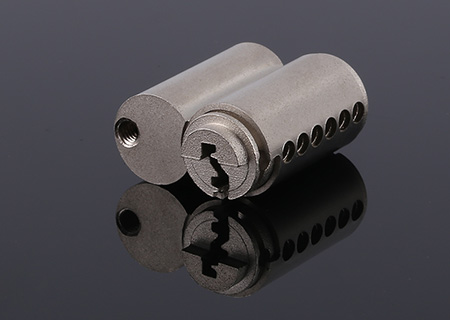

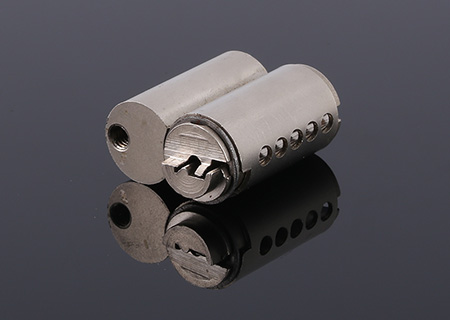

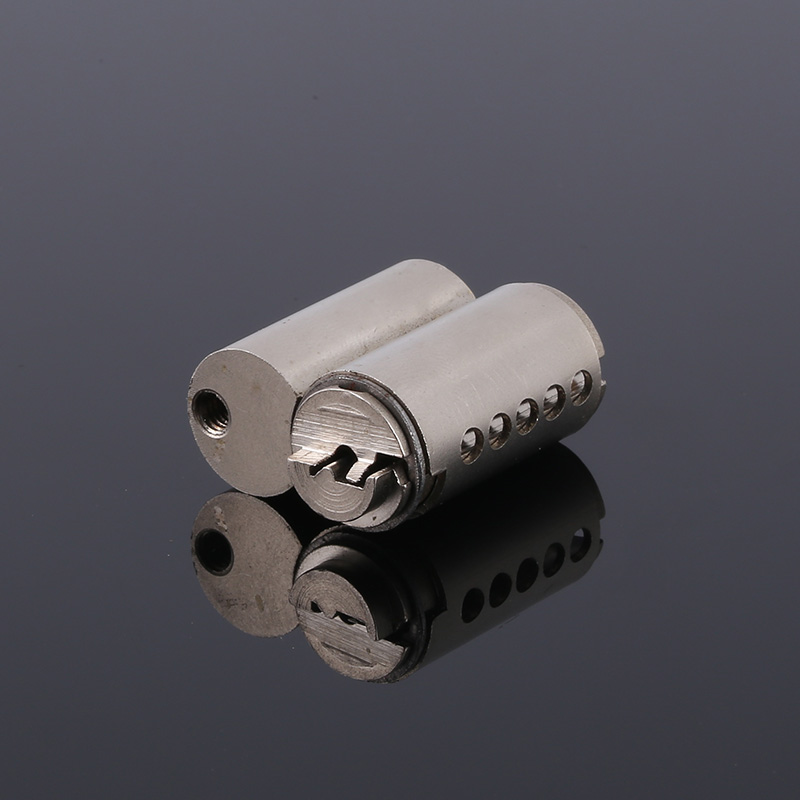

Interchangeable Core Cylinder (with standard key), RC-N
Interchangeable Core Cylinder (with standard key), RC-N Interchangeable Core Cylinder (with standard key), RC-N
Request a Quote
Interchangeable Core Cylinder (with standard key), RC-N
  • Model: RC-N
  • Lock cylinder type: Interchangeable core cylinder
  • Lock cylinders dimension: Ø(15×14)×27mm
  • Lock cylinder material: Brass
  • Pin tumbler: 5/6 pins
  • Surface treatment: Nickel-plated, or as per customer request
  • Function: Anti-drill protection
  • Key: Supplied with standard keys, key thickness of 2.2mm
  • Color: Customized
  • Certificate: EN 1303:2015
  • Warranty: 5 years performance warranty (security and safety assured)
